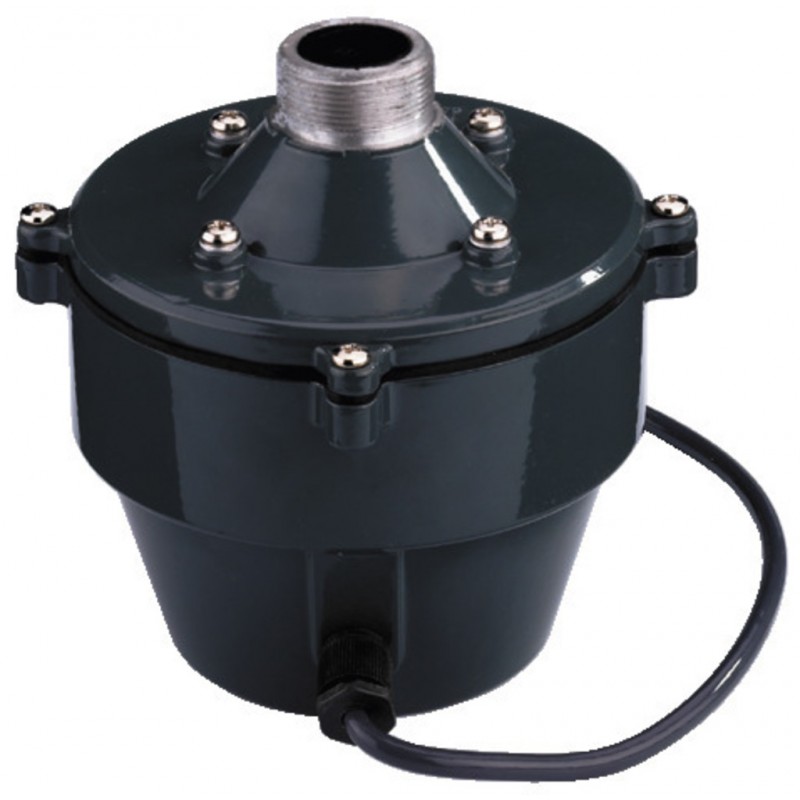

Monacor KU-616T

Specifications

• Brand: MONACOR
• Type: KU-616T
• Active/passive: passive
• Transmission technology: 100 V
• Total power rating: 40 W
• Power rating (RMS): 40/30/20/10/5 W
• Frequency range: 160-6,500 Hz
• Number of speakers: 1
• SPL: 112 dB/W/m
• Radiation angle/beam angle: dep. on horn
• Features: power selector switch
• Housing material: metal
• Colour: black
• Mounting device: 3.5 cm mounting flange
• Protection class: IP66
• Admiss. ambient temp.: -20 °C to +50 °C
• Dimensions: Ø 150 mm x 136 mm
• Width: Ø 150 mm
• Height: Ø 150 mm
• Depth 136 mm
• Weight: 2.2 kg
• Inputs: cable connection
• Replacement voice coil: KU-616T/VC
• Other features: weatherproof
• Net weight: 2.195 kg
