KLOTZ PW04X PolyWIRE Multicore kaabel 4 x 2 x 0.22 mm² - PVC 1m, must

5,30 €
Maksudega
Tootekood: PW04X

ultra flexible

XLPE insulation (cross-linked PE)

high temperature properties

easy and reliable soldering without shrinking

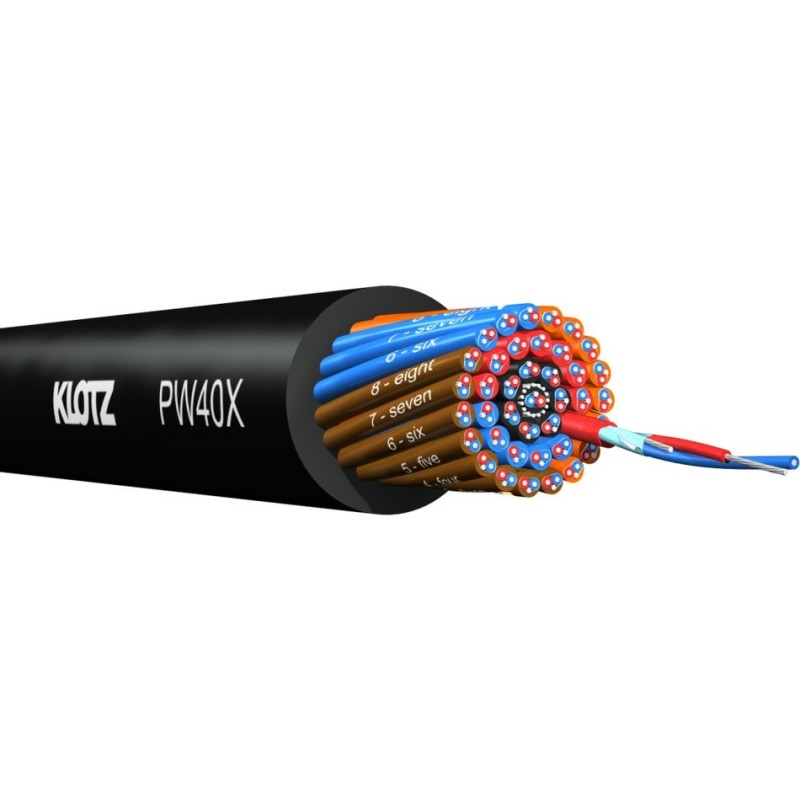

exemplarily illustrated is the 40-pair PW40X

Kogus



Laos Raua tänava kaupluses

114 toodet

The KLOTZ PolyWIRE has been the European bestseller for years in the range of studio connection and installation cables. By the use of a specific PVC the cable is robust and still ultra-flexible and lies flat without looping when laid out or installed. The good audio performance results from generous conductor cross section together with low capacitance. Numbered pair jackets make the assembly easier and labelling dispensable. With the latest generation of this cable a conductor insulation from cross-linked polyethylene is applied to avoid shrinking during soldering.

construction

cond. construction stranded tinned copper, 7 x 0.20 mm
cond. cross section 0.22 mm2
insulation XLPE, red & blue
core arrangement 2 cores twisted to a pair
pair shielding stranded tinned copper drain wire + AL/PET foil
pair jacket PVC, color coded in steps of 8 pairs and numbered consecutively
cable stranding n pairs twisted in layers
outer jacket PVC, soft, matt

mechanics

min. bending radius 5x overall diameter
working temperature -20°C / +70°C

electric

conductor resistance < 85 Ω/km
capacitance
cond./cond. 85 pF/m
cond./shield 170 pF/m
crosstalk attenuation > 15 kHz / 100 dB
insulation resistance > 50 GΩ x km
test voltage
cond./cond. 1000 V
cond./shield 500 V
PW04X
