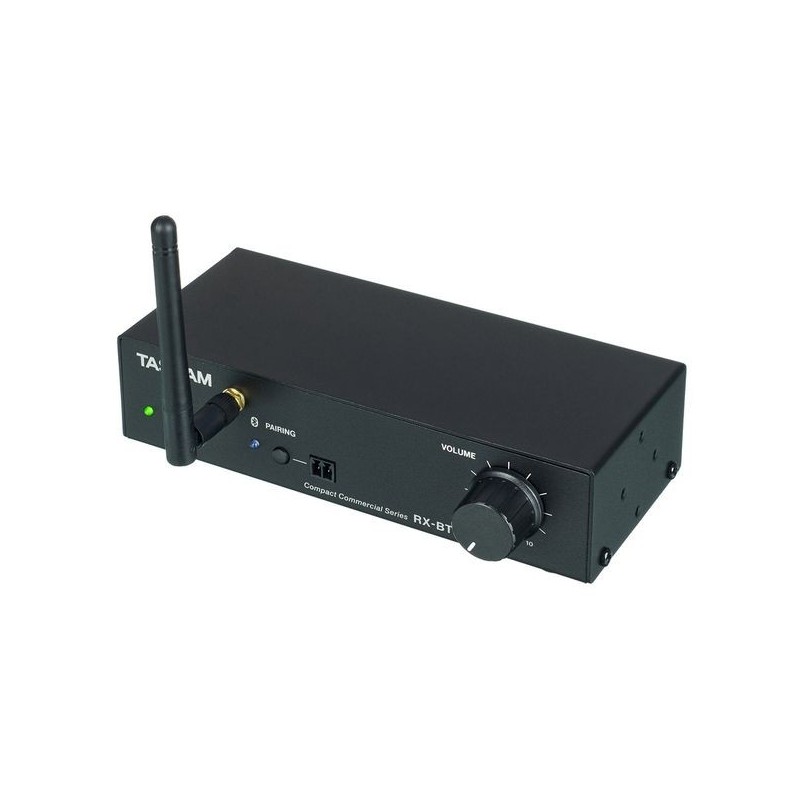

Tascam RX-BT10

Overview

Wireless Freedom for Professionals

The Ideal Bluetooth Solution for Outstanding Audio Quality

The Tascam RX-BT10 is the professional solution for integrating Bluetooth® audio into any audio installation. With Bluetooth 5.1 Class 1, both balanced and unbalanced outputs, an extendable antenna, and the option to connect a remote pairing button, the RX-BT10 delivers versatility and reliable performance in spaces ranging from small rooms to large venues.

Add Bluetooth to Any System with Ease

The RX-BT10 is the easy way to add Bluetooth connectivity to any setup. With Bluetooth 5.1 output class 1, it delivers a stable connection over long distances – up to 100 metres in ideal conditions. The front-panel receiver antenna ensures reliable reception so you don’t have to worry about signal sensitivity.

Output Options

With both balanced and unbalanced outputs, this unit integrates seamlessly into any setup. Choose between stereo XLR and stereo RCA connections, and use the Stereo/Mono switch on the rear panel to maintain a full stereo field or sum the signal as required.

Compact and Built to Last

Built for durability, the RX-BT10 features a rugged metal chassis that can withstand the rigours of any installation. Its compact size makes it easy to integrate into a variety of setups. Mounting points on the top and bottom panels allow the RX-BT10 to be attached to virtually anything, and a bracket kit is included for mounting on a shelf or under a desk.

Designed with reliability in mind, long-lasting performance in any environment is guaranteed.

On the Go

Lightweight and easy to carry from gig to gig, the RX-BT10 is perfect for hotel setups, classrooms or mobile events. It easily adds Bluetooth connectivity to existing systems, while the balanced XLR outputs ensure a professional, reliable connection in any environment.

Prepared for Permanent Installation

Long-term installation of the RX-BT10 is just another example of the unit’s flexibility. With mounting points on the top and bottom panels, it can be securely positioned in any environment – perfect for shops, restaurants and commercial spaces. Its extendable Bluetooth antenna and pairing button provide additional flexibility and ensure optimum performance even in installations where space is limited.

Fit for Any Kind of Event

Ideal for banqueting halls, conference rooms and medium to large venues, the RX-BT10 features a unique ID for each connected device, making it easy to identify and manage multiple devices in the same room. This ensures an organised setup with easy-to-understand device assignments, even in complex installations. A random name is generated for each connected device, but this name can be changed on either iOS, iPadOS or Android devices.

Features

• Makes it easy to integrate smartphones, tablets and other Bluetooth devices with existing audio systems
• Bluetooth 5.1 for stable connections over long distances
• Unique Bluetooth ID for each device allows multiple RX-BT10 units to be used in one installation
• Stores pairing information for up to 8 devices
• Up to 3 devices can be connected at the same time
• Detachable antenna can be extended up to 20 metres for optimum reception
• Extendable pairing button
• Balanced and unbalanced audio outputs (XLR, RCA)
• Output level control on the front
• Audio output switchable between stereo and mono
• Compact, rugged design
• Mounting brackets included
• Optional AK-RS1 allows two units to be installed side by side in a rack

Specifications

Bluetooth

• Version: 5.1
• Output class: 1 (approx. 100 m unobstructed transmission range*)
• Supported profiles: A2DP, AVRCP
• Supported codecs: SBC, AAC

Analogue audio outputs

• Line output (unbalanced): RCA connectors
• Maximum output level: +6 dBV
• Nominal output level: −10 dBV
• Output impedance: ≤100 Ω
• Line output (balanced): XLR female connectors
• Maximum output level: +14 dBu
• Nominal output level: −2 dBu
• Output impedance: ≤200 Ω

Audio performance

• Frequency response: 20 Hz – 20 kHz, +0.5 dB / –1 dB
• Distortion (THD+N): ≤0.04 % (1 kHz, max. output level)
• Signal-to-noise ratio: ≥90 dB (1 kHz, 22 kHz LPF, A-weighted)
• Channel separation: ≥100 dB

Power supply and other specifications

• Power supply: Dedicated AC adapter (Tascam PS-M1524)
• Input voltage: AC 100–240 V (50–60 Hz)
• Output voltage: DC 15 V
• Output current: 2.4 A
• Power consumption: 1.7 W
• Dimensions (W × H × D): 171 mm × 45 mm × 73 mm (excluding protrusions)
• Weight: 530 g
• Permissible operating temperature range: 0–40 °C
• Permissible operating humidity range: 5–85 % (without condensation)
• Included accessories: AC adapter (TASCAM PS-M1524), Bluetooth antenna, Euroblock plug, installation bracket kit, safety guide, TASCAM ID registration guide
