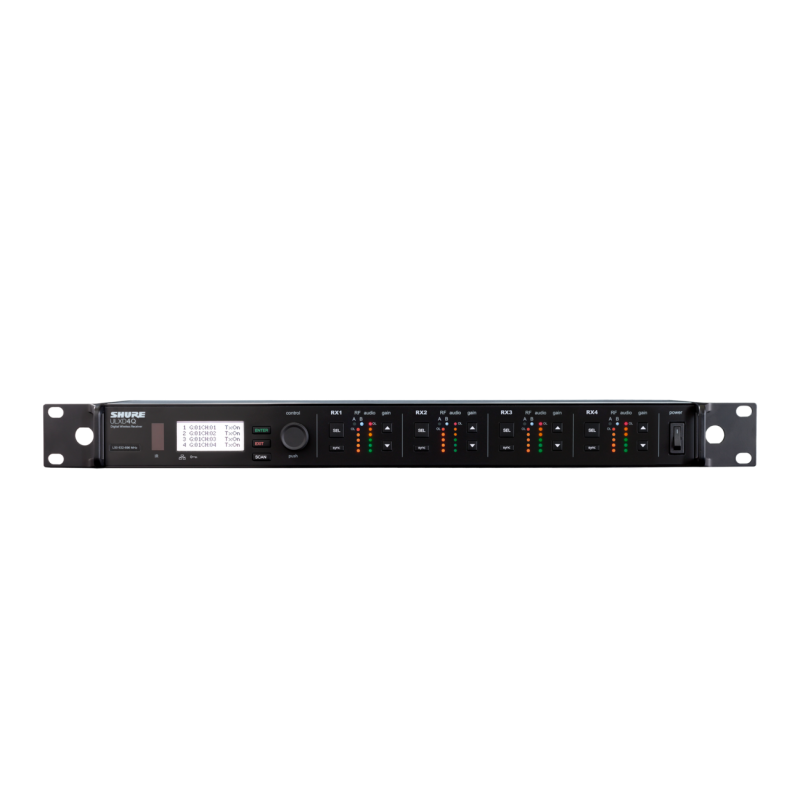

SHURE ULXD4Q H51

MAIN FEATURES

• Four receivers in a rugged 1RU metal chassis with internal power supply
• Up to 64 MHz tuning range (region dependent)
• Optimized scanning automatically finds, and prioritizes the cleanest frequencies to be manually deployed to transmitters over IR sync
• Bodypack Frequency Diversity ensures uninterrupted audio for mission critical applications
• Individual gain controls (up to 60 dB), LED meters, and XLR outputs for each channel
• Audio summing routes two or more audio channels to combinations of XLR receiver outputs, controlled via channel gain adjustment
• Ethernet networking for: streamlined frequency coordination and deployment across multiple receivers; compatibility with Wireless Workbench® 6 software for advanced coordination, monitoring, and control; support for Dante™ digital networked audio
• Compatible with AMX and Crestron control systems
• Interference detection and alerts
• Intuitive front panel LCD menu and controls with various lockout options, plus audio and RF LED meters with peak indicator
• Removable half wave antennas
• 24 bit / 48 kHz digital audio
• 20 Hz – 20 kHz frequency range with flat response
• Greater than 120 dB dynamic range
• Up to 22 active transmitters in one 8 MHz TV channel; High Density mode enables up to 63 active transmitters in one 8 MHz channel
• AES-256 bit encryption equipped for secure wireless transmission
