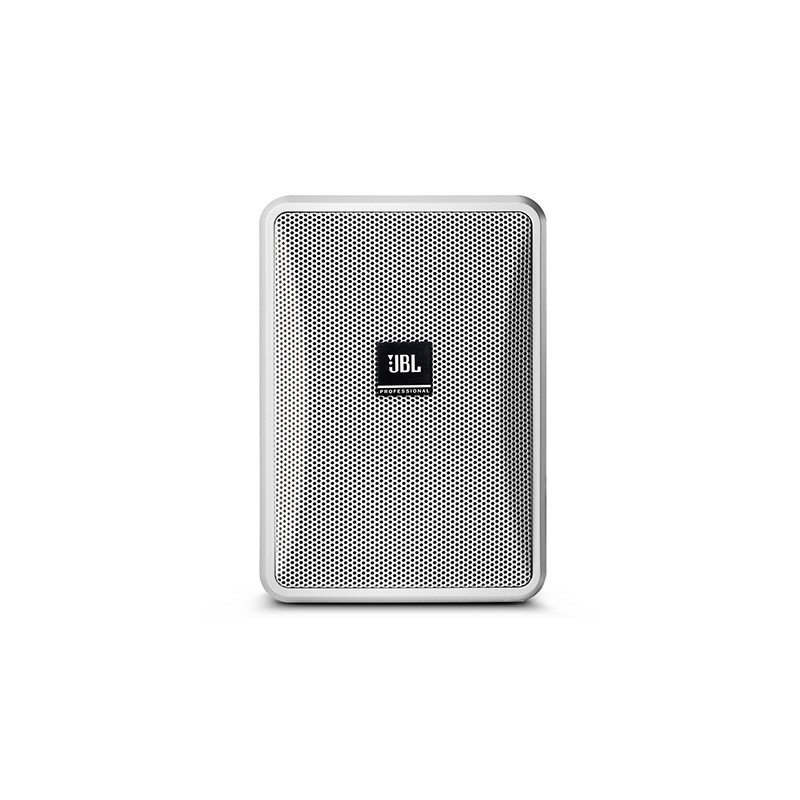

JBL CONTROL 23-1 Ultra-Compact Indoor/OutdoorBackground/Foreground Speaker White
High Output Two-Way Mid/High Frequency Loudspeaker
The Control® 23 is the most compact of JBL Professional’s Control Contractor Series indoor/outdoor loudspeakers making it a perfect choice for patios, foyers, retail or other applications where foreground/ background music and paging are required, with minimum aesthetic impact.
- Components: 3.5 in Polypropylene coated woofer, .5 in Titanium coated horn loaded tweeter.
- Built-in InvisiBall® mounting hardware*.
- Weather resistant enclosure and transducers.
- Readily paintable to match decor.
- 90° x 90° high frequency horn.
- Overload Protection Circuitry.
- Sensitivity: 86 dB SPL, 1 W, 1m
- *Patents pending worldwide
|Frequency Range||85 Hz to 22 kHz (-10 dB)|
|Power Capacity||50 W Continuous Program Power; 25 W Continuous Pink Noise|
|Sensitivity||86 dB SPL, 1W, 1m|
|Directivity Factor (Q)||4.8 dB|
|Directivity Index (DI)||6.8 dB|
|Nominal Impedance||8 ohms|
|Crossover Frequency||3.5 kHz|
|LF Driver||88 mm (3.5 in) Polypropylene cone w/ WeatherEdge|
|HF Driver||13 mm (.5 in) Titanium coated polycarbonate|
|Enclosure Material||THIPS (High Impact Polystyrene)|
|Overload Protection||Full-Range power limiting to protect network and transducers|
|Terminations||Spring terminals, accepts banana plug|
|Environmental||Conforms to Mil Spec 810 for humidity, salt spray, temperature & UV. IEC 529 IP-X4 splashproof rating|
|Dimensions (H x W x D)||193 x 140 x 111 mm
(7.6 x 5.5 x 4.4 in)
|Net Weight (ea)||1.8 kg (4 lb)|
|Shipping Weight (pair)||4.1 kg (9 lb)|
|Included Accessories||Invisiball Assembly 4 mm x 80 mm hex key)|
|Optional Accessories||MTC-23V: For vertical columnar orientation of up to 3 loudspeakersMTC-25/23H: For horizontal splaying of two speakers. Three brackets array up to six loudspeakers in a 360° array. Weather resistance is maximized by MTC-23CM: Ceiling-mount adapter. MTC-23SSG: Stainless Steel Grille for harsh environments. Available in silver, black (-BK) or white (-WH)MTC-PC2: Input panel cover protects input terminals in outdoor environments|
