LD Systems ANNY® R B5
€117.00
Tax included
Reference:
LDANNYRB5

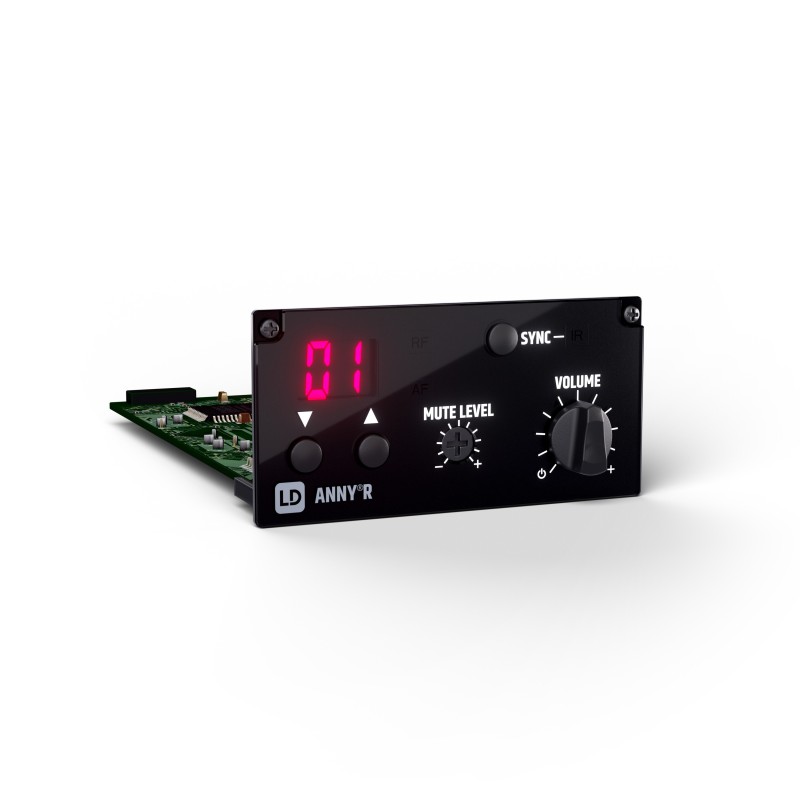

ANNY® R B5
Receiver Module for ANNY®
Frequency Band: B5 (584-608 MHz)
Description
ANNY® R B5
This ANNY® Receiver Module allows retrofitting of an ANNY® wireless microphone by installing it in a free receiver module slot of the ANNY® loudspeaker. It receives with the frequency band B5 the frequency range of 584 - 608 MHz. A volume control on the module allows you to set the volume level to suit your needs, while a mute level control effectively eliminates noise and interference caused by weak signals. Radio signals can be received up to 80 metres using the supplied antenna with TNC connector. The receiver is easily and conveniently synchronised via infrared with the matching ANNY® bodypack transmitter or wireless handheld microphone.
Details
- Radio system with FM technology incl. separate antenna
- Can be retrofitted to all ANNY® loudspeakers
- Reception range up to 80 m
- Separate volume control
- 12 selectable radio channels
- Mute level control (squelch)
Specifications
General
- Material: Steel sheet
- Coating: Powder coated
- Wireless frequencies: 584 - 608 MHz
- Frequency response (-3 dB, rel. Avg): 50 - 17,000 Hz
- Colour: Black
Radio transmission
- Channels: 12
- Antenna connector: BNC female
- Antennas: BNC female
Dimensions & weight
- Width: 72.8 mm
- Height: 39.6 mm
- Depth: 118.5 mm
- Weight: 8 g
LDANNYRB5
