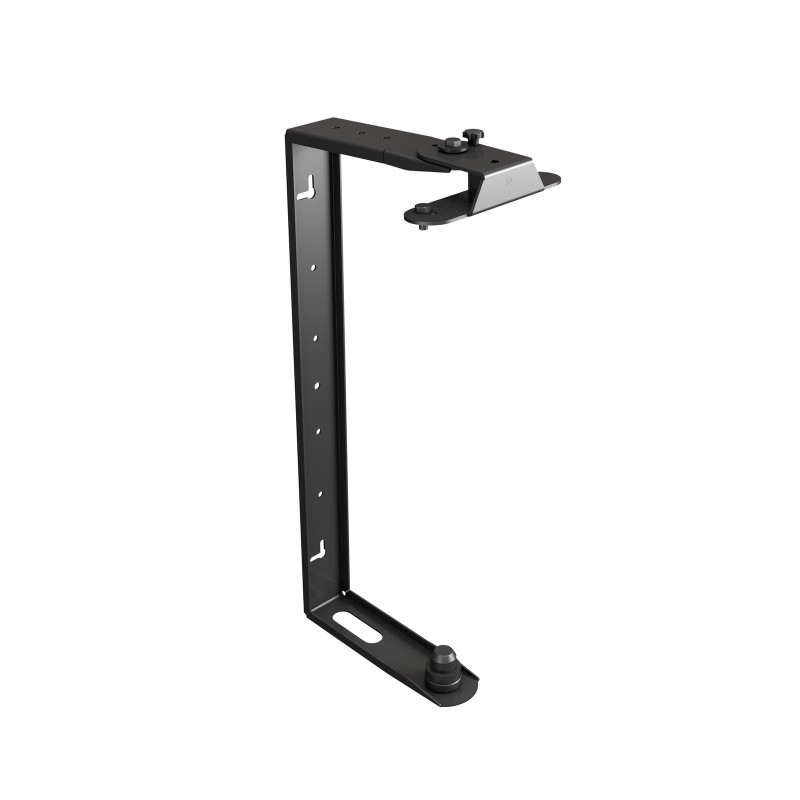

LD Systems ICOA 15 UB

Description

ICOA 15 UB

The freedom to achieve the sound you want is the concept behind the ICOA® and its matching U-mounting bracket as well.

It gives you complete flexibility to mount the ICOA® in different ways - to the wall, either horizontally or vertically, or to a truss using an optional clamping tool.

You can install the bracket on the wall with six screws and quickly and effortlessly "click" your ICOA® into place with the Easy-Click system. All that's left to do is to fasten everything down with a safety screw.

The U-bracket's cable feedthrough behind the ICOA® keeps things looking neat and tidy. Once the ICOA® is installed, you can freely swivel it around in 10°-increments up to 180°. Enough flexibility to find your ideal angle.

Features

• Universal bracket for horizontal or vertical wall attachment
• Truss mounting with optionally available clamp
• Easy-Click System
• Rotatable in 10° increments up to 180° with scaling indicator
• Five holes for M10 screws
• Six holes for wall installation
• Cable feedthrough
• Load capacity up to 27 kg

Specifications

General

• Material: Steel
• Coating: Powder coated
• Colour: Black

Dimensions & weight

• Weight: 4 kg
