dbx ZonePro 1261m
12x6 Digital Zone Processor
The ZonePRO 1261m offers fixed I/O, pre-configured architecture, configurable insert processing and optional duplication of audio channels to another ZonePRO device via a link bus.
The 1261m features a total of 12 inputs and six outputs. Inputs include six balanced mic/line switchable terminal block inputs, four mono-summed pairs of unbalanced RCA inputs and one S/PDIF input for up to two digital channels. Hardware-controlled
microphone gain allows adjustment of microphone gain per channel.
The 1261m device has a pre-configured architecture with input processing, a central matrix and output processing. Two input insert positions and one output insert position allow channel-specific insert processing to be configured. AutoWarmth®, a psychoacoustic function that maintains full frequency bandwidth even when the signal level has dropped, is permanently available on each output zone.
A link bus allows duplication of the first six audio channels to another ZonePRO device in applications where additional output zones are required.

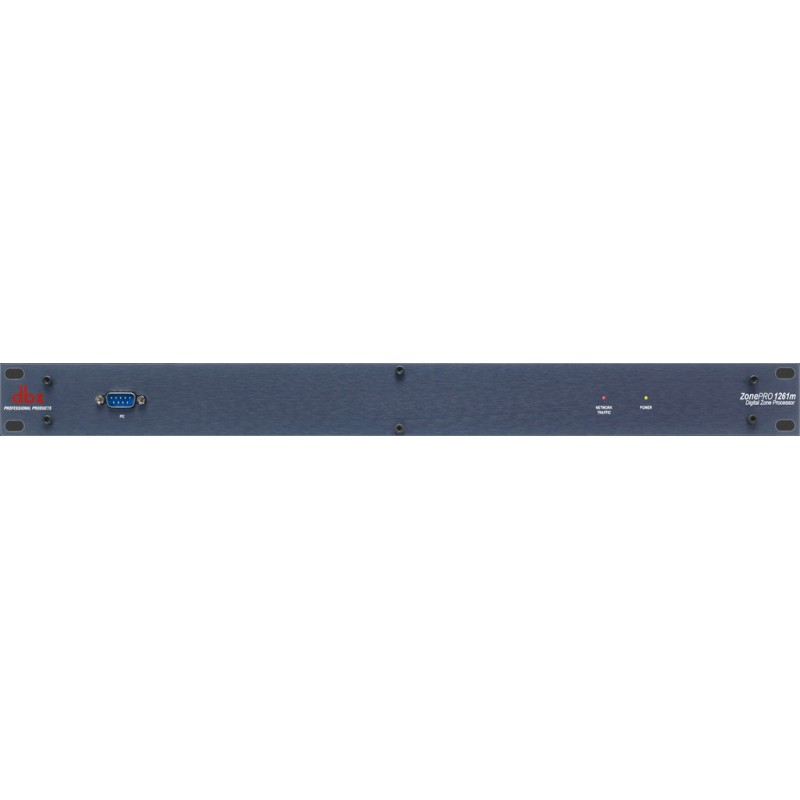

The front panel of the 1261m features a power status LED, a network traffic LED, and an RS-232 control port.
Additional system control is offered in the form of optional Zone Controllers. This collection of hardware wall-controllers represents a series of simple, elegant user interfaces for functions such as volume, source and preset control.
All ZonePRO devices can be controlled by third party control systems via RS-232 or Ethernet as applicable (see table for further information).
ZonePRO Designer—the configuration, control and monitoring software for the ZonePRO family of devices—offers control of the ZonePRO 1261m via Ethernet or RS-232. The Configuration Wizard within ZonePRO Designer guides users through the step-bystep configuration process of the 1261m.
Recommended for: Installed.
12 Inputs / 6 Outputs
6 Balanced Mic/Line Inputs
4 Unbalanced, Mono-Summed RCA Input Pairs
Microphone Gain per Channel
Two Configurable Input Insert Positions
One Configurable Output Insert Position
AutoWarmth® per Output Zone
Optional ZC Controllers
Third Party Control
Input 12 Total - (6) Balanced Mic/Line Inputs, (4) Unbalanced, Mono-Summed RCA Input Pairs, S/PDIF Input
Input Type Euroblock (Mic/Line), RCA (Source)
Input Impedance Euroblock: >50kΩ Balanced, >25kΩ Unbalanced, RF Filtered; RCA: >25kΩ Unbalanced, RF Filtered
Max Input +20dBu Mic/Line, +12dBu RCA
CMRR > 40dB, typically >55db @ 1kHz
Mic Preamp gain 30 to 60dB
Mic Preamp Equivalent Input Noise (EIN) < -118dBu, 22Hz-22kHz, 150Ω Source Impedance
Mic Preamp Phantom Power 15V
Output 6 Total
Output Type Electronically Balanced, RF Filtered Euroblock
Output Impedance 120Ω Balanced, 60Ω Unbalanced
Max Output +20dBu
A/D Converter dbx Type IV™ Conversion System
A/D Dynamic Range (line) >113dB, A-weighted, >110dB unweighted
Type IV Dynamic Range >119dB, A-weighted, 22kHz; BW: >117dB, unweighted, 22kHz BW
Sample Rate 48kHz
D/A Dynamic Range 112dB A-weighted, 109dB unweighted, 22kHz BW
Dynamic Range >110dB A-weighted, >107dB unweighted, 22kHz BW
THD+Noise 0.003% typical at +4dBu, 1kHz, 0dB gain
Frequency Response 20Hz – 20kHz, +/- 0.5dB
Interchannel Crosstalk >80dB typical
Propagation Delay 0.8 msec
Operating Voltage 100-240 VAC, 50/60Hz
Power Consumption 27 W
Unit Weight 6.2 lbs / 2.81 kg
Shipping Weight 8.35 lbs / 3.78 kg
Dimensions 1.75” (1U) x 19” x 7.75” (45mm x 483mm x 197mm)
Safety Agency Certifications UL 60065, IEC 60065, E 60065, EN 55013
