KLOTZ PL22Y16 PolyLIVE Multicore kaabel 16 x 2 x 0.22 mm² - PVC 1m, must

20,20 €
Tootekood: PL22Y16

overall braid shield

compact construction

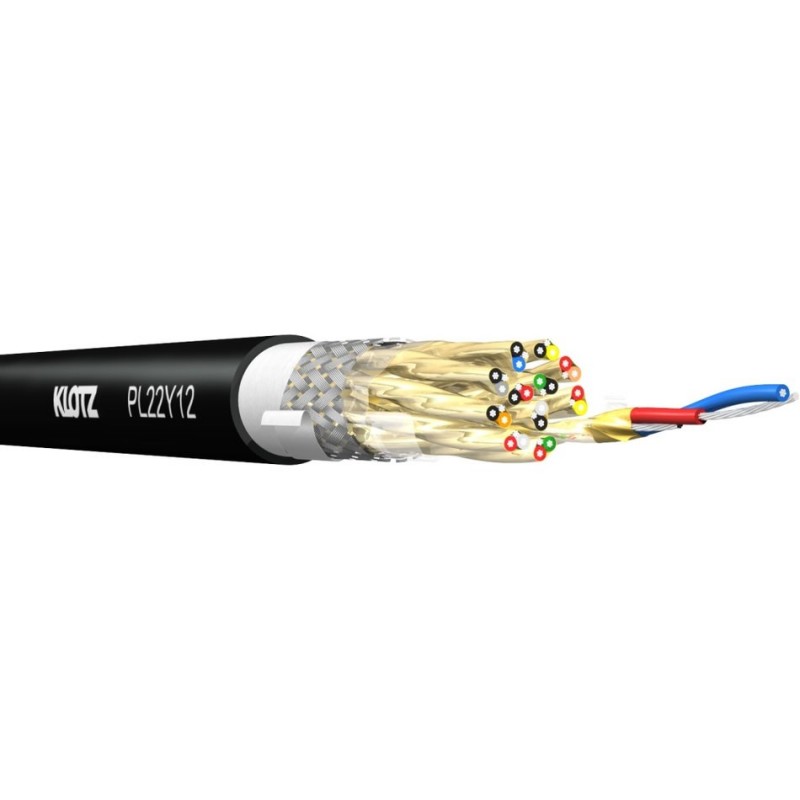

exemplarily illustrated is the 12-pair PL22Y12


Tarneaeg 2 - 4 nädalat

PolyLIVE, the cable designed for live stage use, successfully combines superb performance with compact dimensions. The best-selling multicore in the KLOTZ catalogue, it offers up to 48 pairs. The high conductor cross-section of 0.22 mm² prevents signal attenuation and can easily handle transmission over long distances. The polyethylene insulation of the conductors delivers low capacitance to avoid treble loss. Short aligned lay lengths ensure high crosstalk attenuation between individual audio channels. Each individual core is shielded by AL-coated foil with integrated drain wire and wrapped in plastic foil to prevent short-circuiting of the individual pair shields. The PolyLIVE is thus the ideal basis for manufacturing single-ground systems. The entire cable is enclosed in an ultra-dense braided shield of tinned copper and a rugged outer PVC jacket. With pre-tinned drain wires and Klotz colour-coded pair markings, the PolyLIVE is outstandingly easy to work with.


cond. construction stranded tinned copper, 7 x 0.20 mm (AWG 24/7)
cond. cross section 0.22 mm2
insulation polyethylene (PE), KLOTZ multicore colour code
core arrangement 2 cores twisted to a pair
pair shielding stranded tinned copper drain wire + AL/PET foil
pair taping polypropylene (PP) foil
cable stranding n pairs twisted in layers
overall shield tinned copper braid
outer jacket PVC, matt


min. bending radius 8x overall diameter
working temperature -20°C / +70°C


conductor resistance < 85 Ω/km
cond./cond. 75 pF/m
cond./shield 140 pF/m
crosstalk attenuation > 100 (15 kHz) dB
insulation resistance > 50 GΩ x km
test voltage
cond./cond. 1200 V
cond./shield 500 V
